Mechanical angle

360º(Endless)

Protection degree

IP54

Operating torque

<2.5mN·m

Life expectancy

20,000,000

Mass

Approx.4g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Operating temperature range

-30℃～+125℃

Storage temperature range

-30℃～+125℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

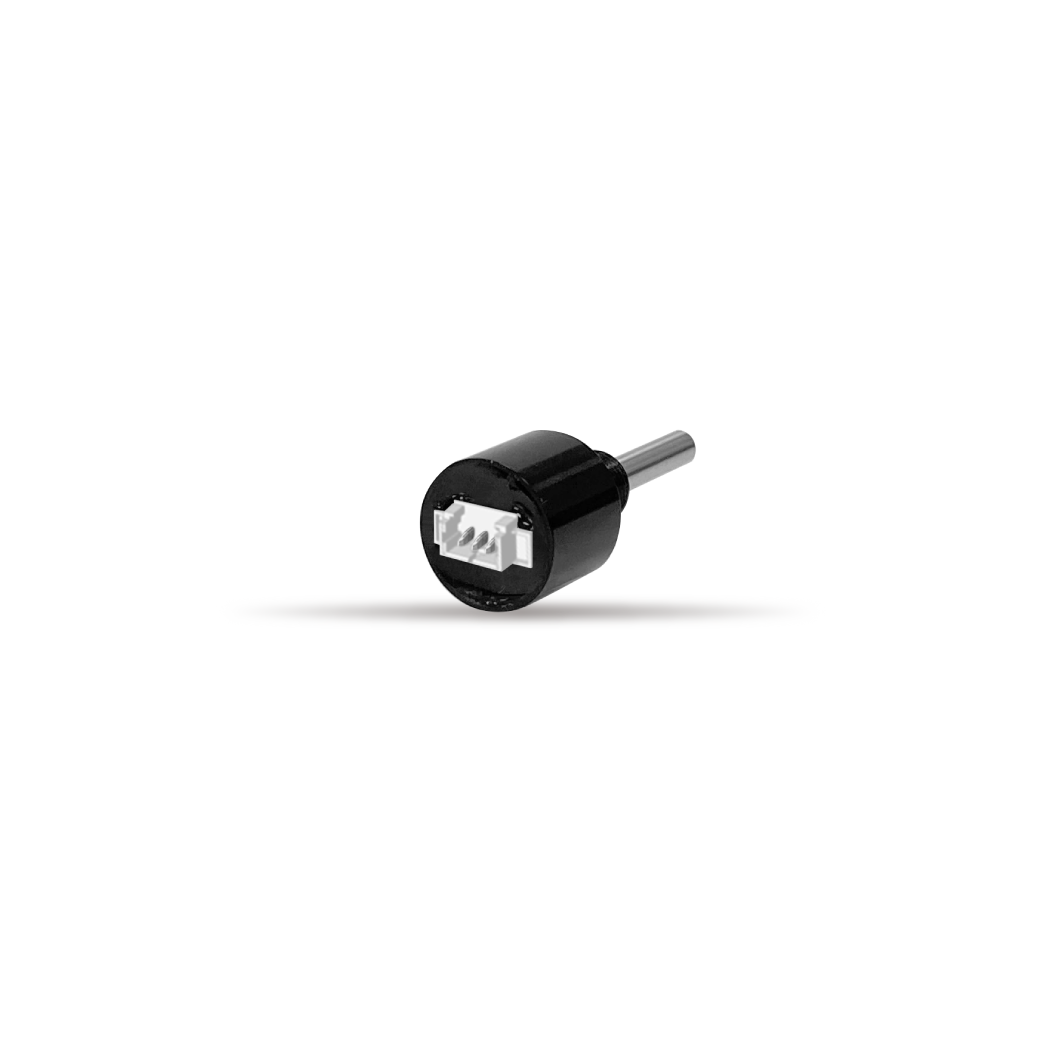

Standard model

WDH12 0505 W360

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special analog signals

PWM

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、flatted etc.)

With connectors

With connectors
