Sibo has focused on potentiometers and sensors for 30 years.

CP22E
CP22E

CP22E

1-turn Wire-wound POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Single turn

  • Wirewound

  • Bushingmount

  • Low-cost Item

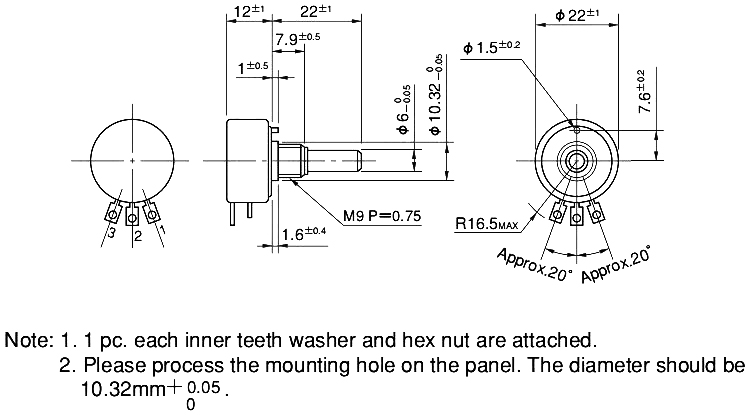

Dimension


Parameter

General Specifications

Standard Resistance Range

50Ω~10KΩ

Max. Practical Resistance Value

20KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.25%, (±0.35% in case of within 1kΩ )

Power Rating

0.5W

Noise

<100ΩE.N.R.

Electrical Travel

355°±5°

Mechanical Travel

360°(Endless)

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<5mN·m(50gf·cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.20g

Other Specifications

Standard products

If you want to select this series of standard products (with stop position, mechanical stroke 320 °, stopper strength 0.6N · m [6kgf · cm]), please refer to our CP22TE datasheet.
