Protection degree

IP67

Staring torque

<50mN·m

Life expectancy

>100,000,000

Mass

Approx.360g

Housing material

Aluminium alloy

Shaft material

Stainless steel

Shaft load

Radial 80N, Axial 40N

Shaft diameter

φ6/ φ8/ φ10/ φ12

Operating temperature range

-30℃～+105℃

Storage temperature range

-30℃～+105℃

Vibration

100m/s²,55Hz~2000Hz (EN 60068-2-6)

Shock

100m/s²,6ms (EN 60068-2-27)

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

100V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

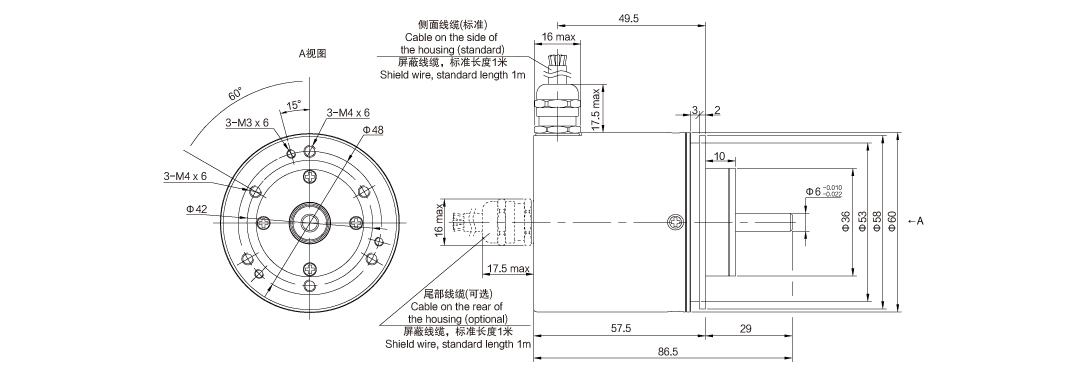

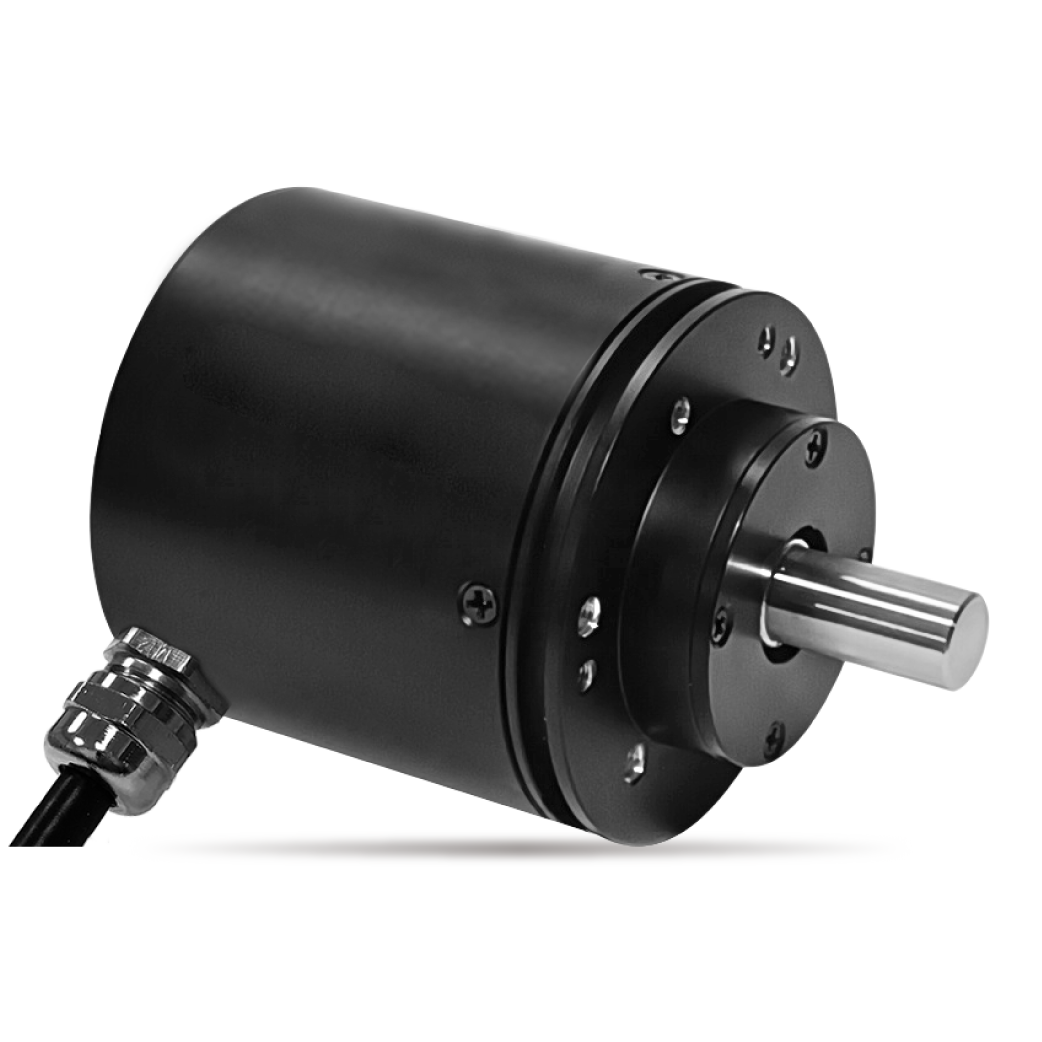

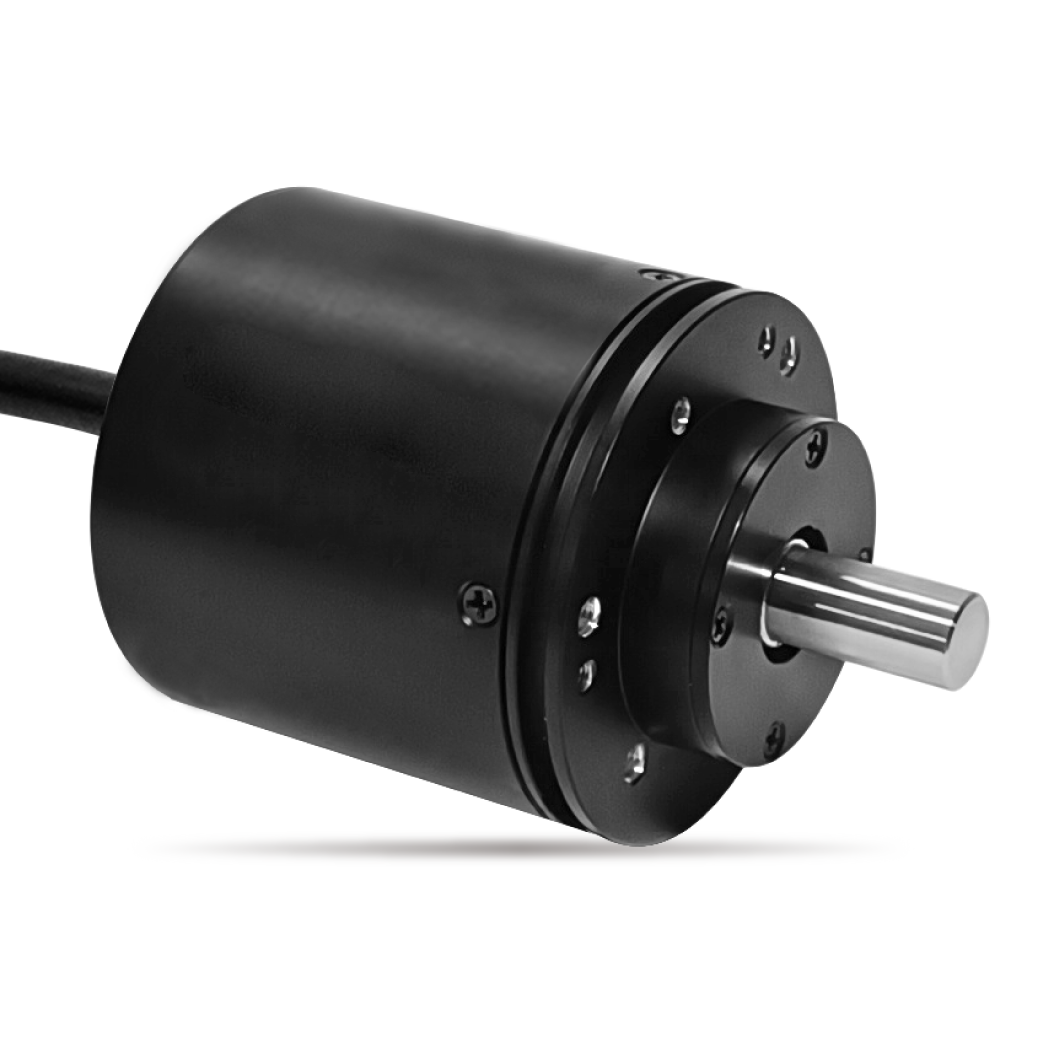

Standard model

EAMD58A-S1-W1212BA

Applied voltage

9V-30V

Current consumption (no-load)

Single turn ≤70mA, multi-turn ≤130mA

Single-turn resulation

4096(12Bit);16384 (14 Bit) max

Multi-turn resulation

4096 (12 Bit)

Interface

SSI differential signal

Code rule

Binary / Gray

Signal level

TTL

Update signal

10μs

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special shaft

Special length of shaft, special diameter, special machining on shaft (like shaft slotted、flatted etc.) or blind hole
