Sibo has focused on potentiometers and sensors for 30 years.

XL60H
XL60H

XL60H

Draw Wire Sensor

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Incorporate contactless potentiometer

  • Measurement ranges: 1500mm

  • Output signal: 5K，10K，0~5V，0~10V，4~20mA

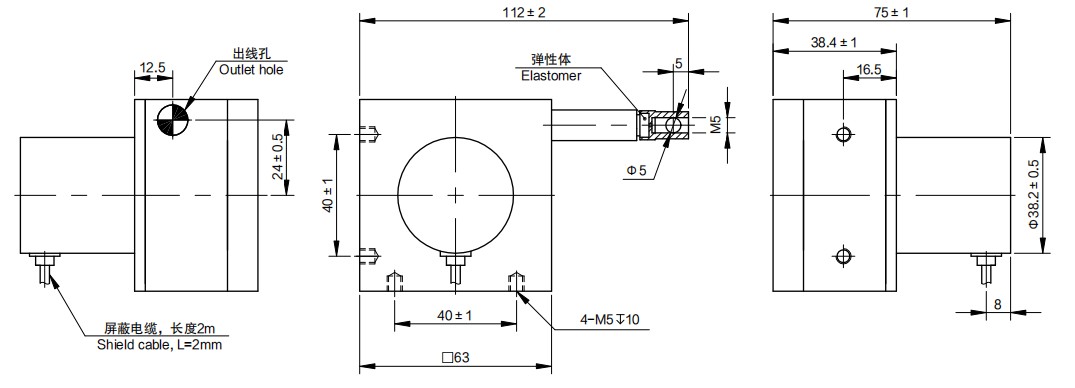

Dimension


Parameter

General Mechanical Specifications

Measure stroke

1500mm

Protection degree

IP54

Tensile force

2N~4N

Mechanical Life expectancy

20,000,000

Mass

Approx.580g

Housing material

Anodized aluminium alloy

Wirerope

0.6mm flexible wire

Max. reciprocating speed

600mm/s

The length of the cable

2m

Environmental Specifications

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

Shock

10~1500Hz、10G

Vibration

50G

General Electrical Specifications

Contactless potentiometer model

SENTOP R22M

Applied voltage

5V±10%

Output signal

0～5V(ratio)

Current consumption (no-load)

<16mA

Output deviation at both ends

<1%·VCC

Load resistance

>100KΩ

Electrical angle

3600º±7°

Independent linearity tolerance

±0.5%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Special Specifications Available

Special specifications

Available for multi-segment output, special cables, high protection degree, etc.
