Sibo has focused on potentiometers and sensors for 30 years.

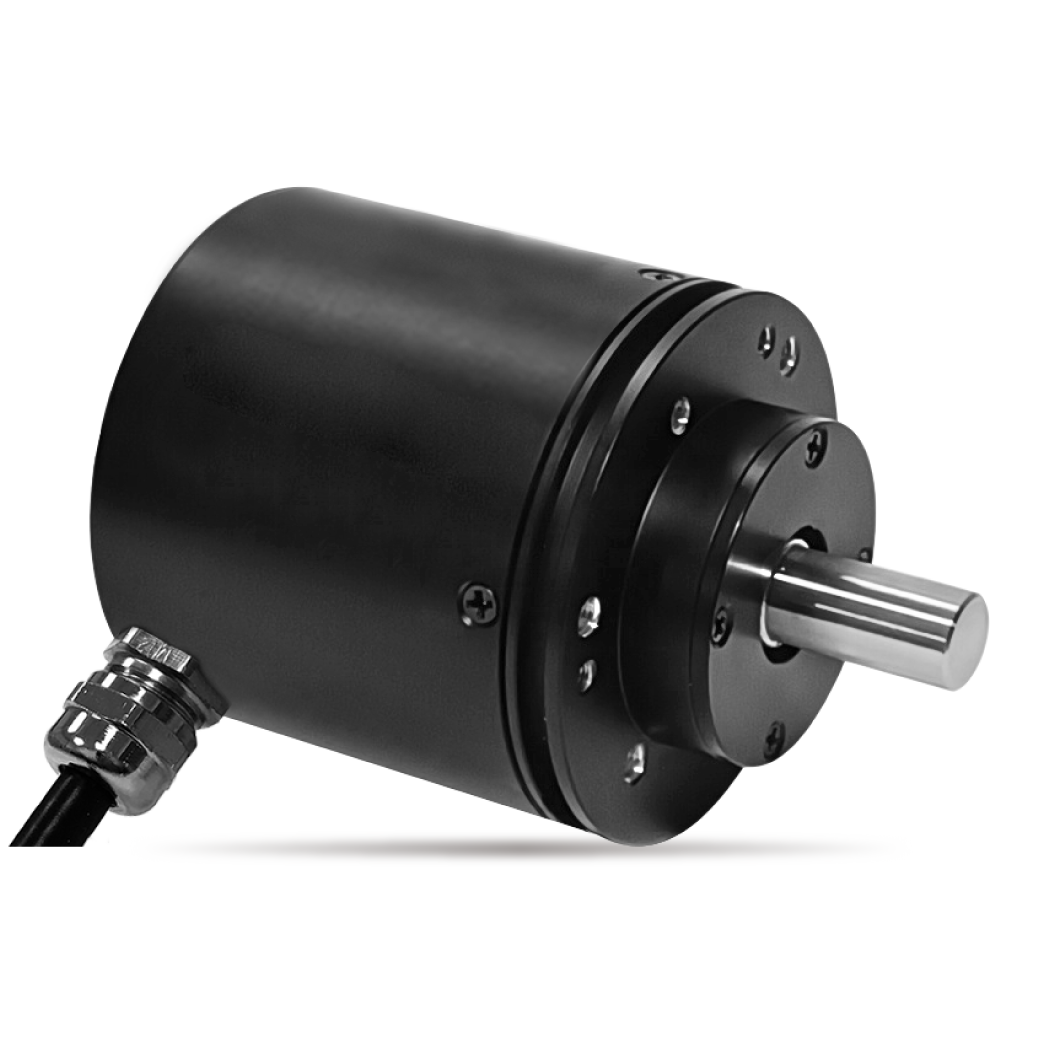

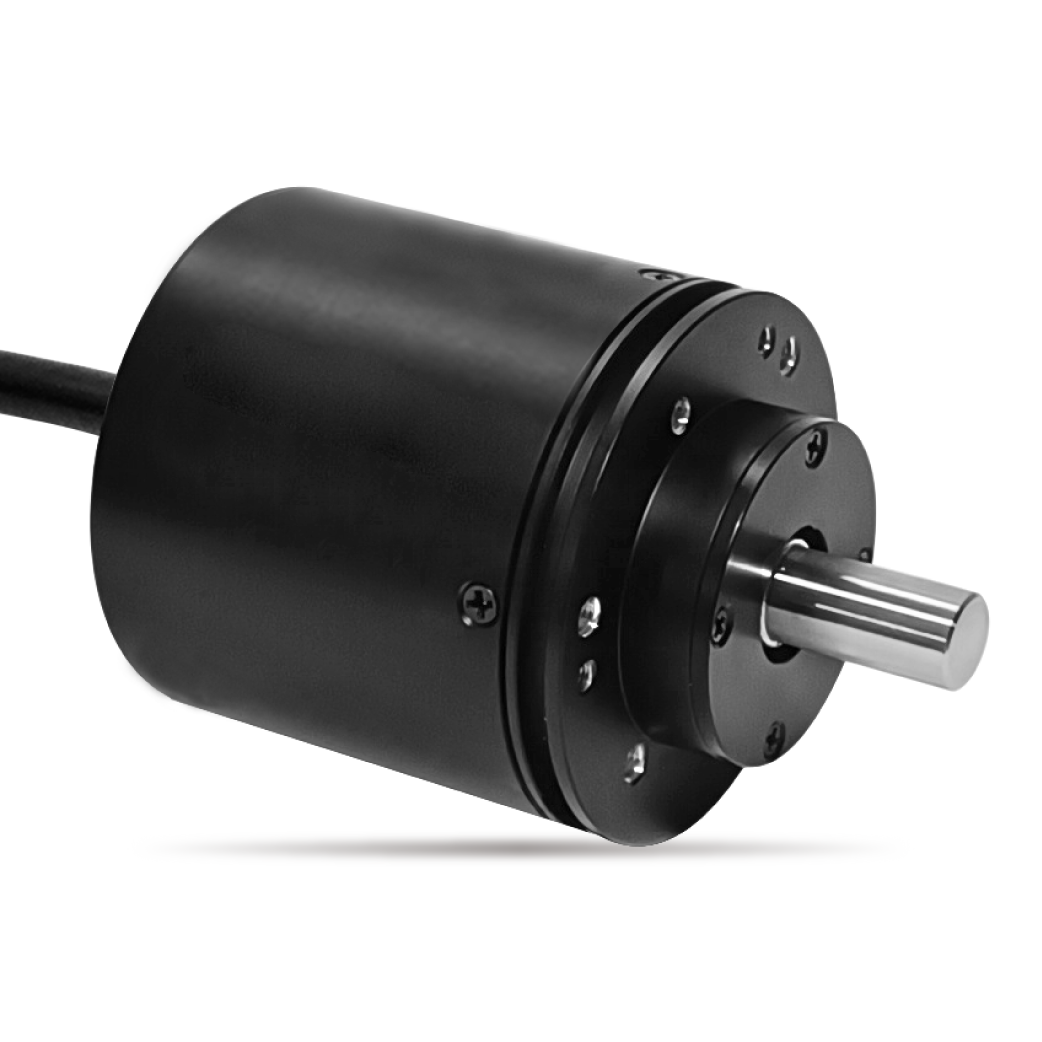

EID58A
EID58A
EID58A
EID58A

EID58A

Incremental Encoders

瀏覽量： Time: 2023-11-01

    Characteristics：

  • Magnetic encoders, speed sensor

  • Any PPR up to 4096 available

  • High protection degree

  • With one couple of precision ball bearings

  • Heavy-duty

  • Antimagnetic interference

  • Screw&Servo mount

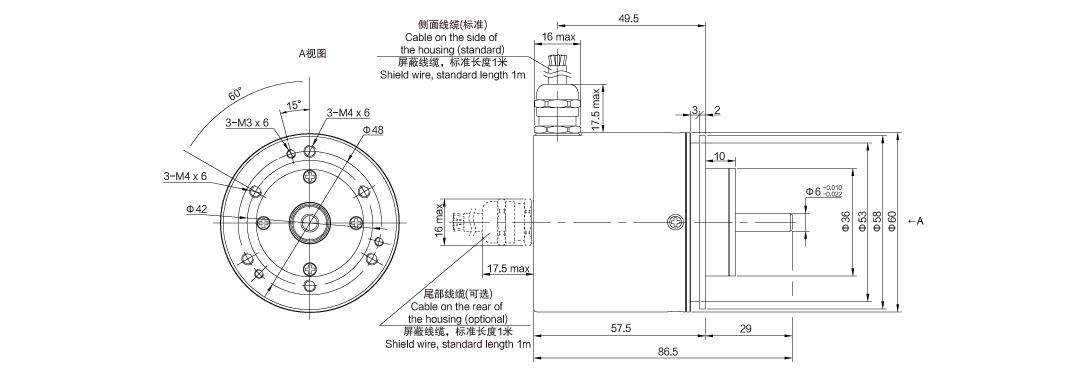

Dimension


Parameter

General Mechanical Specifications

Protection degree

IP67

Starting torque

≤50mN·m

Max.speed

12,000rpm

Life expectancy

100,000,000

Mass

Approx.360g

Housing material

Aluminium alloy

Shaft material

Stainless steel

Shaft load

Radial 80N, Axial 40N

Shaft diameter

φ6/ φ8/ φ10/ φ12

Environmental Specifications

Operating temperature range

-30℃～+105℃

Storage temperature range

-30℃～+105℃

General Electrical Specifications

Standard model

EID58A-S2-W4096P

Applied voltage

5V-30V

Output high level

>3V

Output low level

<0.25V

Output form

Push-pull output

Number of output pulse

4096 ppr

Output propagation delay

<2μs

Current consumption (no-load)

<20mA

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft, special diameter, special machining on shaft (like shaft slotted、flatted etc.) or blind hole
