Sibo has focused on potentiometers and sensors for 30 years.

CFL
CFL

CFL

Linear Conductive Plastic POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Linear Potentiometers/Linear Sensors

  • Conductive Plastic

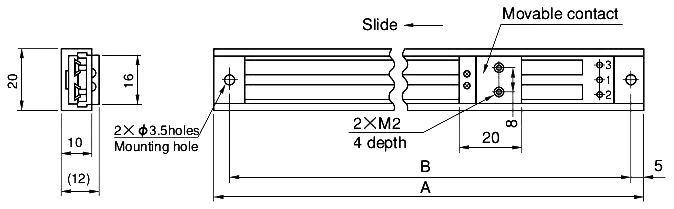

Dimension


Parameter

General Specifications

Dimension（A±1）

250mm、350mm、450mm、550mm、1050mm

Dimension（B±0.5）

240mm、340mm、440mm、540mm、1040mm

Standard Resistance Values

2K,5K,10K,20K,50K,100K,200K,500K

Total Resistance Tolerance

Standard Class ±20%(M), Precision Class ±10%(K)

Independent Linearity Tolerance

Standard Class ±0.5%, Precision Class ±0.1%, Super Precision Class±0.05%

Resolution

<against input voltage 0.1%

Output Smoothness

<2%C.R.V.

Contact Resistance Variation

2.0W、2.5W、3.0W、4.0W、6.0W

Power Rating

200±1mm、300±1mm、400±1mm、500±1mm、1000±1mm

Electrical Stroke

About203mm、303mm、403mm、505mm、1005mm

Mechanical Stroke

>1000MΩ(500V.D.C.)

Insulation Resistance

1 minute at 500V.A.C.

Dielectric Strength

<0.2N(20gf)

Friction

±400p.p.m./℃

Stopper Strength

10,000,000 slider reciprocating motions

Resistance Temperature Coefficient

-30℃～+105℃

Mass

Approx.70g、100g、130g、160g、300g

Special Specifications Available

Special mechanical stops

Mechanical stops at both ends
