Product Product

Product

Sibo has focused on potentiometers and sensors for 30 years.

8FLP15A
8FLP15A

8FLP15A

Linear Conductive Plastic POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Linear Potentiometers/Linear Sensors

  • Conductive Plastic

  • With front and rear exteded shaft

  • Low-cost Item　

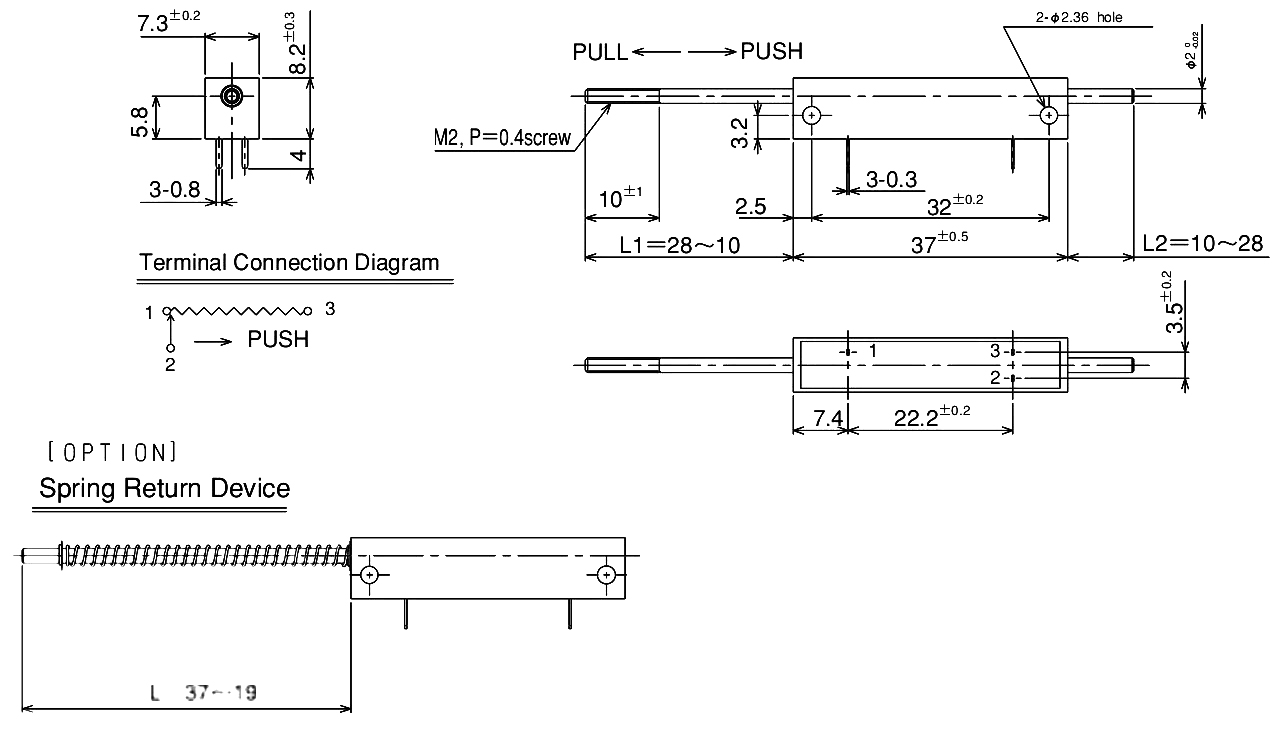

Dimension


Parameter

General Specifications

Standard Resistance Values

1K,2K,5K,10K,20K (Ω)

Total Resistance Tolerance

Standard Class ±15％ (L), Precision Class ±10％ (K)

Independent Linearity Tolerance

Standard Class ±2％, Precision Class ±1％

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.3W

Electrical Stroke

15±0.5mm

Mechanical Stroke

About 18mm

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 500V.A.C.

Friction

<0.5N(50gf)

Stopper Strength

Approx. 10N(1kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 5g

Special Specifications Available

Special shaft type

Special machining on the shaft

With spring return device

With spring return device mounted on the outer shaft (Friction is approx. 4N [400gf].)

Other

With lead wire terminals
