Sibo has focused on potentiometers and sensors for 30 years.

H30JHK
H30JHK

H30JHK

Magnetic-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Hall effect joystick

  • 3-dimensional coordinate type joystick

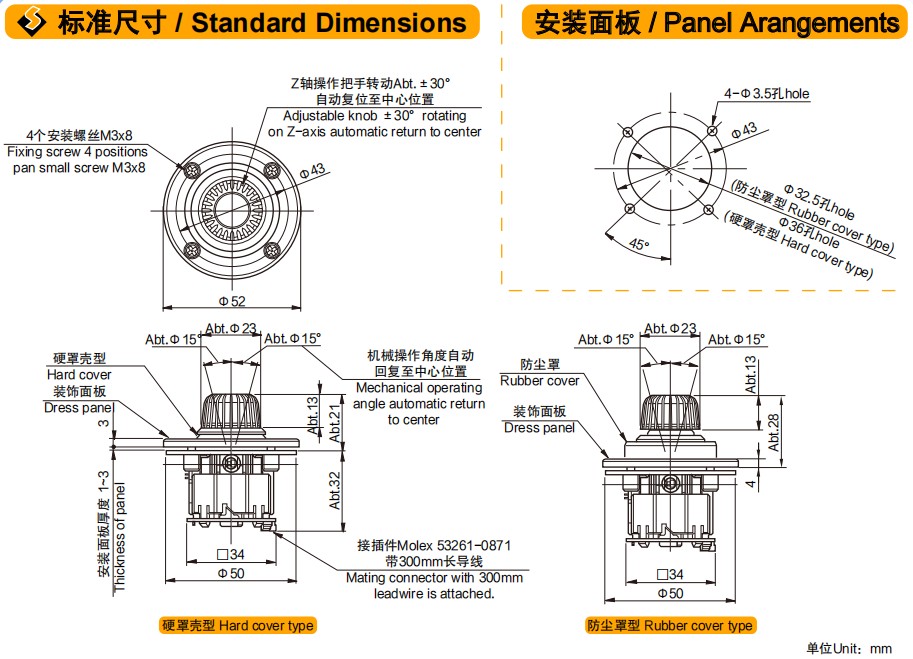

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

3-dimensional coordinate type, X and Y directions: Approx. ±15° from center position, Z diretions: Approx. ±30° from center position

Operating force

(Standard spring return device: Automatically return to center), X and Y directions: Approx.1.5～3N(150～300gf), (X and Y directions with rubber cover: Approx.1.5～3.5N(150～350gf)), Z direction:Approx.10～30mN～m(100～300gf.cm)

Operating temperature range

-20℃～+60℃

Vibration

10～55Hz 98m/S2

Shock

294m/S2

Mechanical life expectancy

Approx.1,000,000 operations.

Mass

Approx.50g

General Electrical Specifications

Type

Hall effect IC type resistive element incorporated

Applied voltage

5V±10%

Effective output

Approx.0.5V～4.5V

Electrical rotating angle

X and Y-axis: Approx.±15°, Z-axis: Approx.±30°

Independent linearity tolerance

±3%

Load resistance

＞10KΩ

Dielectric strength

1 minute at 250V.A.C.

Insulation resistance

>100MΩ（250V.D.C.）

EMS durability

50V/m
