Sibo has focused on potentiometers and sensors for 30 years.

12HPC
12HPC

12HPC

Multi-turn Wire-wound POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Multi-turn (standard: 5-turn, 10-turn)

  • Wirewound

  • Bushingmount

  • Low-cost Item

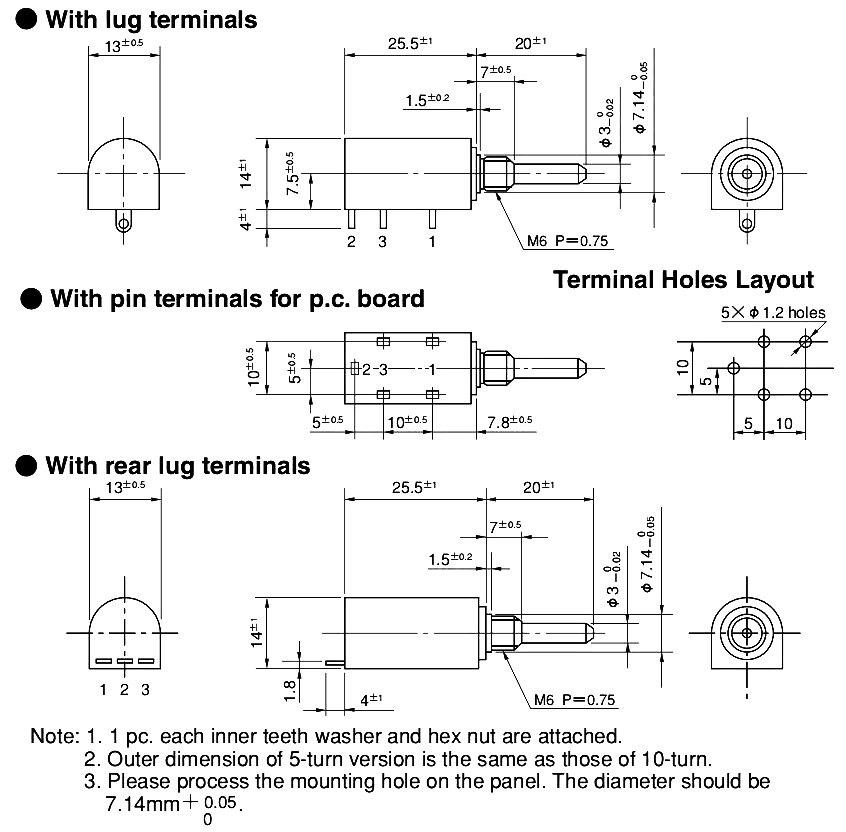

Dimension


Parameter

General Specifications

Standard Number Of Turns

10-turn

Standard Resistance Range

100Ω~50KΩ

Max. Practical Resistance Value

100KΩ

Total Resistance Tolerance

Standard Class ±3%(H), Precision Class ±1%(F)

Independent Linearity Tolerance

Standard Class ±0.25%, Precision Class ±0.1%, (Within 5KΩ)(±0.15%)

Power Rating

1.5W

Noise

<100ΩE.N.R.

Electrical Travel

3600°±5°

Mechanical Travel

3600°

Insulation Resistance

>1000MΩ(500V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Starting Torque

<3mN•m(30gf•cm)

Stopper Strength

Approx.0.15N•m(1.5kgf•cm)

Appropriate fastening torque of the nut

<0.8N•m(8kgf•cm)

Resistance Temperature Coefficient

±20p.p.m./℃

Mass

Approx.10g

Special Specifications Available

Special turns

3-turn type (S12HPC-3)

Special shaft type

Shaft with front and rear extension (Rear shaft with 0.8mm dia. and 10mm length), special machining on the shaft

Special housing case

Simple sealed housing
