Sibo has focused on potentiometers and sensors for 30 years.

30JHK
30JHK

30JHK

Potentiometer-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Low-cost

  • 3-dimensional coordinate type joystick

  • With conductive plastic element

  • Industrial joystick

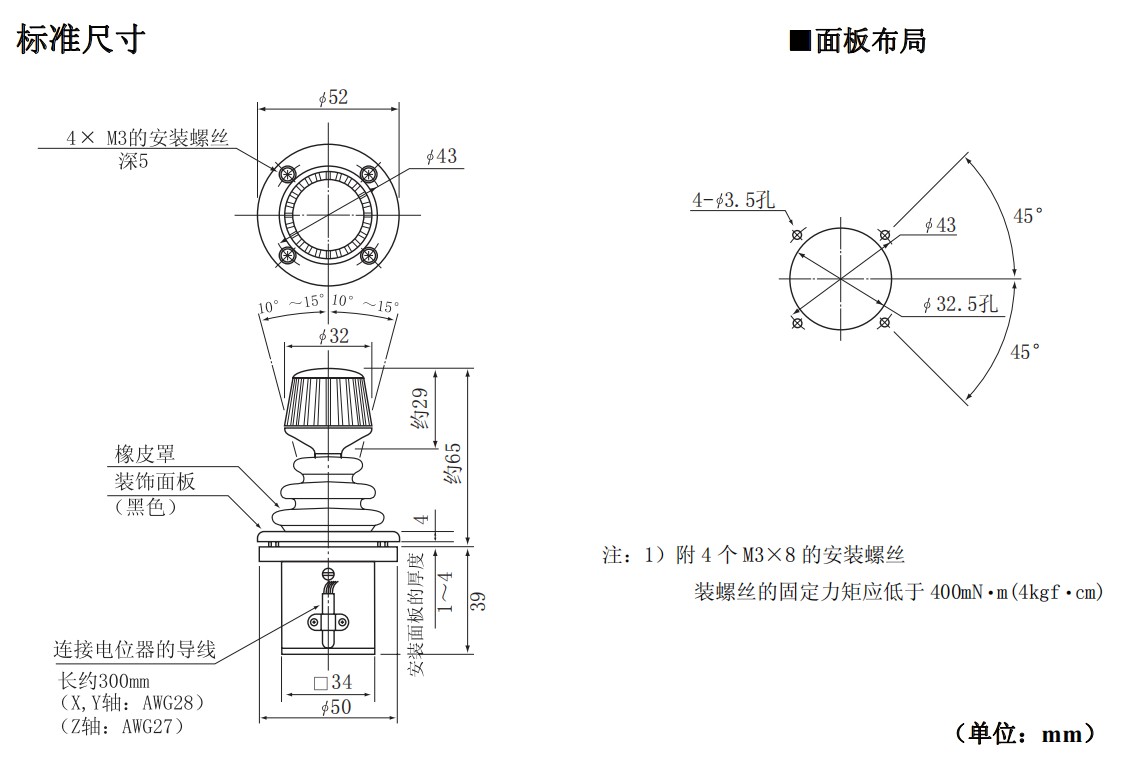

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

3-dimensional coordinate type. X and Y directions : Approx.±10°～±15° from center position.(Omni-directionally)，Z direction : Approx.±30°～±35° from center position.

Operating force

(Omni-directionally)（300~700gf·cm）, X and Y directions : Approx.1～2N (100～200gf), Z direction : Approx.30～70mN?m (300～700gf.cm)

Operating temperature range

-20℃~+60℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx.2,000,000 operations

Mass

Approx.130g

General Electrical Specifications

Potentiometers mounted

Special conductive plastic resistive element is exclusively used for 30JH series.

Type

X and Y axes pots, Z axis pot.

Rating

10KΩ±20%

Electrical rotating angle

0.1W, 0.04W

Resistance value

Approx.20° , Approx.60°

Independent Iinearity tolerance

±5%

Output smoothness

＜against input voltage 0.2%

Contact resistance variation

＜6%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

＞1000MΩ（500V.D.C）
