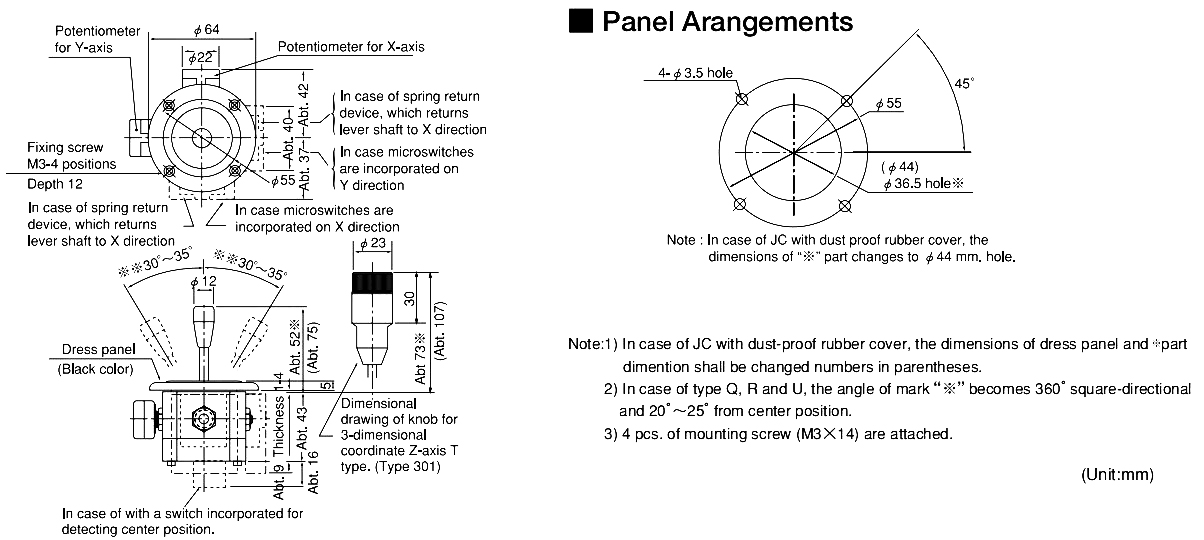

Controlling range of operating lever

2-dimensional coordinate type : Omni-directionally approx.±30°～±35°, operation from center position. 3-dimensional coordinate type : Approx. 320° rotation by knob-operation in addition to the controlling range of 2-dimensional coordinate operation. (in case of center-returning type with spring return device, the operating range is approx. ±45°～±50° from center position.)

Operating force

Without spring return device. Standard : Approx. 0.5～0.8N (50～80gf.), High torque type : Approx. 2～6N (200～600gf.), With spring return device : (subject to directivity), X, Y directions : Approx. 0.8～1.5N (80～150gf), Z direction : Approx. 20～85mN?m (200～850gf?cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx. 5,000,000 operations

Mass

2-dimensional coordinate type : Approx. 280g, 3-dimensional coordinate type : Approx. 230g

Potentiometers mounted

SFCP22E 10k Ω±15%, 0.2W (conductive plastic resistive element), Independent linearity tolerance ±3%, - For X and Y axes : Electrical rotating angle : Approx. 60°, - For Z axis : Electrical rotating angle : Approx. 320°, - In case of spring return type for Z axis : Electrical rotating angle approx. 90°, All terminals can be fitted with the Tyco 110 series fasten receptacle (2.8 × 0.5mm) or equivalents. - In case of 3-dimensional coordinate Z-axis potentiometer inside-knob incorporated type (T-type), the following potentiometer is used : SFCP12AC 10kΩ ±15%, independent linearity tolerance ±3%, 0.06W (Electrical rotating angle : Approx. 90°)

Output smoothness

＜against input voltage 0.2%

Contact resistance variation

＜5%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

＞1000MΩ（500V.D.C）
