Sibo has focused on potentiometers and sensors for 30 years.

30JEK
30JEK

30JEK

Switch-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Switch-type Joysticks

  • With spring return device

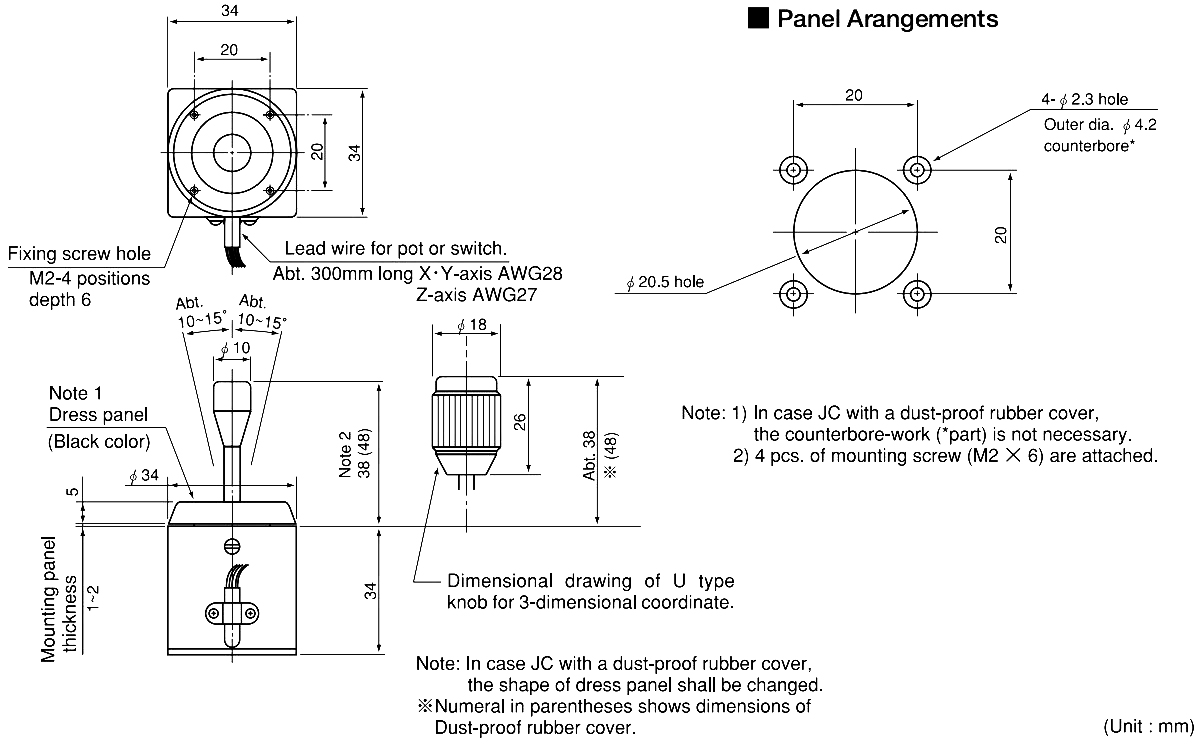

Dimension


Parameter

General Specifications

Controlling range of operating lever

X and Y directions : Approx.±10°～±15° from center position, Z direction : Approx.±30°～±35° from center position.

Operating force

(Standard spring return device Automatically return to center) X and Y directions : Approx.0.8～2N (80～200gf)， Z direction : Approx.15～60mN?m (150～600gf.cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx.1,000,000 operations

Mass

2-dimensional coordinate type : Approx. 80g, 3-dimensional coordinate type : Approx. 100g

Electrical Specifications

Switches used

(Resistance load) Rating 24V.D.C., 50mA [In case of 3-dimensional coordinate and Z-axis switch-inside-knob incorporated type U, the ratings are 24V.D.C., 100mA.]

Dielectric strength

1 minute at 500V.A. C.

Insulation resistance

＞100MΩ（250V.D.C）
