Hello everyone, today we come to introduce the new products of Sibo! Today we launch the PHF8 series pedal controller. Compared to the diversified selection of potentiometers, contactless potentiometers, joysticks, and other products, Sibo's pedal family focuses on the customization of specialization and special functions. Each product has its own unique capabilities and plays its role in various industries such as construction machinery, machine tool equipment, and specialized vehicles. Next, let's take a look at what the newest member of PHF8 has to offer.

PHF8 Pedal Performance Advantages

Sturdy Structure: PHF8 adopts all-metal structure, and the main structural components are made of high-quality aluminum alloy, which is sturdy, reliable, and not bulky, making it very suitable for use in environments with high loads. The overall appearance uses a restrained matte black color, which highlights a more stable temperament.

High protection degree: PHF8 has a protection degree of IP65 which can adapt to the harsh outdoor environments.

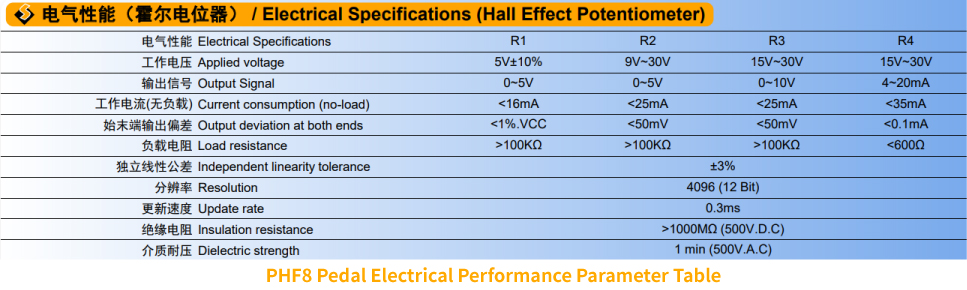

Varius output signal: As a magnetic type foot pedal, the biggest feature of PHF8 is the richness and customizability of output signals, such as common output signals of 0-5V, 0-10V, 4-20mA, and dual redundant signal output. The additional switch signals can also be achieved. In addition, we can also provide some special output amplitude products, such as 0-3.3V, 0-24V, etc. In addition to analog signals, PHF8 can also output various serial bus signals, such as RS485, RS232, CANbus, etc.

PHF8 Pedal Other Optional Specifications

Application extension: In addition to signal customization, product lead wire length, connector model, etc. can be customized according to customer requirements.

Improving safety performance: We can also install a Kick-down device on this PHF8 pedal. When the pedal reaches the end of its stroke, there will be a noticeable aggravated stepping sensation to alert the operator.

PHF8 Pedal Application Field

The sturdy and reliable structure, high protection degree, and rich output signals of PHF8 make it have a very strong adaptability and versatility, providing opportunities to showcase its skills in various fields.

Sibo has rich industry experience

SENTOP brand PHF8 pedal and the Sakae/Sibo brand H80FCL pedal are highly interchangeable, with common installation dimensions and the same operating angle, making it easy for customers to replace and install, giving customers a more diversified choice.

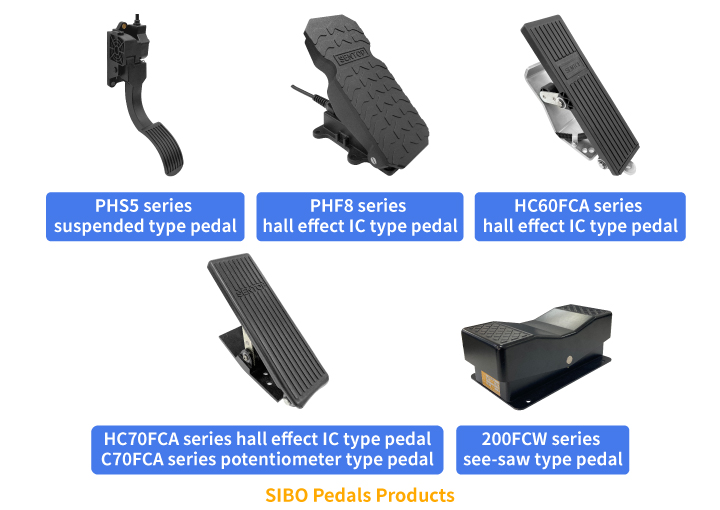

In addition to PHF8, Sibo also has a number of other types of pedal products, including HC60FCA, C70FCA, HC70FCA, PHS5 and so on, including potentiometer type, non-contact type, floor type, suspended type, etc., to meet your different needs and cope with different usage scenarios. Partners in need can follow our WeChat public account to obtain technical information, or call 021-66058508 for direct consultation and information.

With nearly 30 years of experience in the sensor industry, Sibo has a profound understanding of customer and market needs. We not only provide customers with high-quality and cost-effective products; At the same time, we can also provide professional customized solutions to meet the special needs of our customers. Sibo always keeps up with the trend of industry development, constantly innovates on the road of product innovation, and helps our customers to be competitive in the industry.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.

More information

Shanghai Sibo M&E Co., Ltd is a renowned enterprise and recognized by numerous awards such as Shanghai High-tech Enterprise, Shanghai "Specialized and Innovative" Enterprise, Shanghai SMS Enterprise, Shanghai Class AAA Contract Credit Enterprise, Class A Taxpayer Enterprise, and Shanghai Advanced Private Enterprise. Meanwhile SIBO has achieved quality management certification ISO9000.The company's products have been exported to overseas markets such as Southeast Asia, Europe and the United States for a long time. There are thousands of types of products, including potentiometers, joysticks, pedals, draw wire sensors, encoders, handwheels, and signal communication modules. Welcome to inquire and patronize!

For more product information, please visit Sibo's website at www.xcdtbxzp.cn/en/
